横断側溝グレーチング （第一機材）の販売
事業者様向けグレーチング見積ページです。商品価格は税別表記になっております。

支払
送料
詳細		 本州・四国（一部地域を除く）
１,９８０円※加算送料について　
直送品につき３万円以上で送料無料
出荷 欠品時は
入金確認後 実働10日で出荷		 北海道・九州・離島・一部地域
見積フォーム ・ FAX見積用紙
※本品は直送品につき、送料は個別加算となります

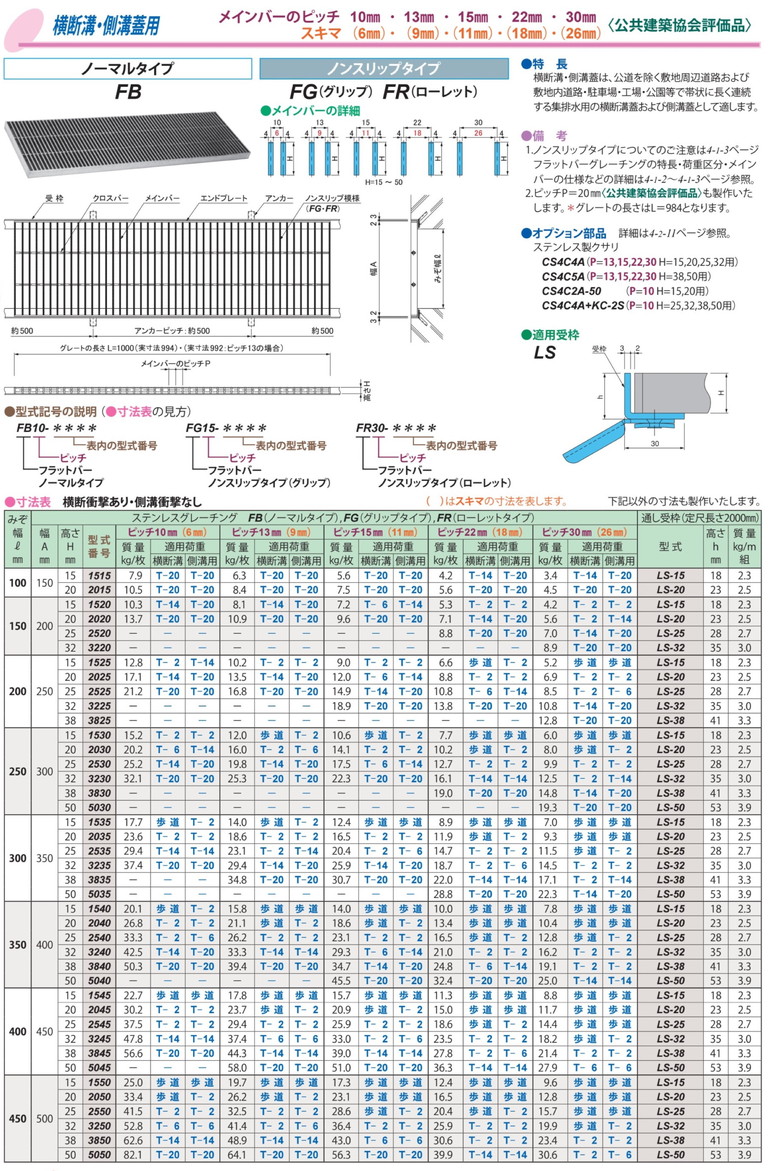

 FB（一般用）　・　FG（スベリ止め）　・　FR（スベリ止め）　

  ご注文方法
  • 販売価格は下記定価表の掛率６３％、 別途 消費税が加算されます。
  • ご発注前に必ず ＦＡＸ見積 をしてください。 ご発注は ＦＡＸ注文をしてください。

みぞ幅 寸法 型式   通し受枠
※長さ 1000 FB, FG,FR FB FG FR LS
幅 高さ ピッチ 定価／枚 定価／枚 定価／枚 型式 定価／M
100 150 15 10 10-1515 ¥43,300 ¥51,700 ¥51,700 LS-15 ¥10,100
13 13-1515 ¥34,700 ¥41,600 ¥41,600
15 15-1515 ¥29,900 ¥36,000 ¥36,000
22 22-1515 ¥23,300 ¥27,600 ¥27,600
30 30-1515 ¥18,800 ¥21,900 ¥21,900
20 10 10-2015 ¥60,300 ¥72,200 ¥72,200 LS-20 ¥10,300
13 13-2015 ¥46,600 ¥56,400 ¥56,400
15 15-2015 ¥38,700 ¥49,800 ¥49,800
22 22-2015 ¥28,900 ¥36,000 ¥36,000
30 30-2015 ¥21,700 ¥29,400 ¥29,400
150 200 15 10 10-1520 ¥55,700 ¥66,900 ¥66,900 LS-15 ¥10,100
13 13-1520 ¥43,900 ¥53,100 ¥53,100
15 15-1520 ¥38,400 ¥46,300 ¥46,300
22 22-1520 ¥29,800 ¥35,600 ¥35,600
30 30-1520 ¥22,800 ¥27,300 ¥27,300
20 10 10-2020 ¥76,200 ¥91,500 ¥91,500 LS-20 ¥10,300
13 13-2020 ¥58,500 ¥70,000 ¥70,000
15 15-2020 ¥48,700 ¥60,100 ¥60,100
22 22-2020 ¥37,300 ¥46,500 ¥46,500
30 30-2020 ¥29,100 ¥34,000 ¥34,000
25 22 22-2520 ¥45,600 ¥57,400 ¥57,400 LS-25 ¥11,900
30 30-2520 ¥34,300 ¥40,100 ¥40,100
32 30 30･3220 ¥43,600 ¥50,100 ¥50,100 LS-32 ¥13,500
200 250 15 10 10-1525 ¥69,400 ¥83,300 ¥83,300 LS-15 ¥10,100
13 13-1525 ¥55,900 ¥67,800 ¥67,800
15 15-1525 ¥49,400 ¥59,500 ¥59,500
22 22-1525 ¥37,100 ¥44,200 ¥44,200
30 30-1525 ¥29,300 ¥34,600 ¥34,600
20 10 10-2025 ¥95,500 ¥114,400 ¥114,400 LS-20 ¥10,300
13 13-2025 ¥73,500 ¥87,600 ¥87,600
15 15-2025 ¥65,200 ¥79,200 ¥79,200
22 22-2025 ¥48,100 ¥59,500 ¥59,500
30 30-2025 ¥36,300 ¥43,700 ¥43,700
25 10 10-2525 ¥114,000 ¥136,800 ¥136,800 LS-25 ¥11,900
13 13-2525 ¥87,700 ¥104,800 ¥104,800
15 15-2525 ¥77,400 ¥94,700 ¥94,700
22 22-2525 ¥57,800 ¥72,500 ¥72,500
30 30-2525 ¥44,800 ¥50,300 ¥50,300
32 15 15-3225 ¥93,600 ¥112,100 ¥112,100 LS-32 ¥13,500
22 22-3225 ¥69,500 ¥86,900 ¥86,900
30 30-3225 ¥54,100 ¥62,500 ¥62,500
38 30 30-3825 ¥62,700 ¥72,400 ¥72,400 LS-38 ¥15,200
250 300 15 10 10-1530 ¥82,600 ¥98,900 ¥98,900 LS-15 ¥10,100
13 13-1530 ¥65,300 ¥79,500 ¥79,500
15 15-1530 ¥58,300 ¥70,700 ¥70,700
22 22-1530 ¥43,400 ¥52,300 ¥52,300
30 30-1530 ¥34,000 ¥40,300 ¥40,300
20 10 10-2030 ¥112,100 ¥134,600 ¥134,600 LS-20 ¥10,300
13 13-2030 ¥86,000 ¥105,600 ¥105,600
15 15-2030 ¥74,700 ¥90,100 ¥90,100
22 22-2030 ¥55,300 ¥70,400 ¥70,400
30 30-2030 ¥43,100 ¥51,200 ¥51,200
25 10 10-2530 ¥133,100 ¥160,200 ¥160,200 LS-25 ¥11,900
13 13-2530 ¥102,300 ¥122,100 ¥122,100
15 15-2530 ¥90,300 ¥106,600 ¥106,600
22 22-2530 ¥66,000 ¥83,000 ¥83,000
30 30-2530 ¥50,900 ¥60,000 ¥60,000
32 10 10-3230 ¥167,400 ¥202,100 ¥202,100 LS-32 ¥13,500
13 13-3230 ¥128,000 ¥163,300 ¥163,300
15 15-3230 ¥108,300 ¥128,900 ¥128,900
22 22-3230 ¥79,600 ¥98,500 ¥98,500
30 30-3230 ¥62,000 ¥72,300 ¥72,300
38 22 22-3830 ¥93,600 ¥120,600 ¥120,600 LS-38 ¥15,200
30 30-3830 ¥72,200 ¥84,700 ¥84,700
50 30 30-5030 ¥87,700 ¥109,400 ¥109,400 LS-50 ¥17,600
300 350 15 10 10-1535 ¥95,900 ¥115,000 ¥115,000 LS-15 ¥10,100
13 13-1535 ¥78,700 ¥95,800 ¥95,800
15 15-1535 ¥70,100 ¥84,900 ¥84,900
22 22-1535 ¥52,700 ¥63,100 ¥63,100
30 30-1535 ¥40,400 ¥48,400 ¥48,400
20 10 10-2035 ¥132,700 ¥152,800 ¥152,800 LS-20 ¥10,300
13 13-2035 ¥101,700 ¥119,200 ¥119,200
15 15-2035 ¥89,200 ¥104,100 ¥104,100
22 22-2035 ¥63,800 ¥82,200 ¥82,200
30 30-2035 ¥49,700 ¥62,000 ¥62,000
25 10 10-2535 ¥157,000 ¥189,200 ¥189,200 LS-25 ¥11,900
13 13-2535 ¥120,700 ¥144,100 ¥144,100
15 15-2535 ¥108,000 ¥128,500 ¥128,500
22 22-2535 ¥78,200 ¥97,100 ¥97,100
30 30-2535 ¥60,200 ¥70,200 ¥70,200
32 10 10-3235 ¥198,900 ¥239,400 ¥239,400 LS-32 ¥13,500
13 13-3235 ¥152,700 ¥182,000 ¥182,000
15 15-3235 ¥128,400 ¥156,800 ¥156,800
22 22-3235 ¥94,100 ¥115,000 ¥115,000
30 30-3235 ¥72,300 ¥84,900 ¥84,900
38 13 13-3835 ¥173,800 ¥199,900 ¥199,900 LS-38 ¥15,200
15 15-3835 ¥150,900 ¥181,400 ¥181,400
22 22-3835 ¥109,600 ¥138,400 ¥138,400
30 30-3835 ¥84,400 ¥100,300 ¥100,300
50 22 22-5035 ¥143,900 ¥180,900 ¥180,900 LS-50 ¥17,600
30 30-5035 ¥108,500 ¥130,300 ¥130,300
350 400 15 10 10-1540 ¥108,900 ¥130,700 ¥130,700 LS-15 ¥10,100
13 13-1540 ¥86,300 ¥104,300 ¥104,300
15 15-1540 ¥77,100 ¥93,400 ¥93,400
22 22-1540 ¥59,100 ¥68,800 ¥68,800
30 30-1540 ¥44,100 ¥52,600 ¥52,600
20 10 10-2040 ¥148,700 ¥178,100 ¥178,100 LS-20 ¥10,300
13 13-2040 ¥113,800 ¥140,900 ¥140,900
15 15-2040 ¥99,400 ¥118,400 ¥118,400
22 22-2040 ¥70,700 ¥90,500 ¥90,500
30 30-2040 ¥56,400 ¥69,000 ¥69,000
25 10 10-2540 ¥175,700 ¥211,700 ¥211,700 LS-25 ¥11,900
13 13-2540 ¥135,000 ¥167,200 ¥167,200
15 15-2540 ¥119,900 ¥142,600 ¥142,600
22 22-2540 ¥86,700 ¥106,700 ¥106,700
30 30-2540 ¥68,900 ¥76,400 ¥76,400
32 10 10-3240 ¥221,200 ¥266,900 ¥266,900 LS-32 ¥13,500
13 13-3240 ¥169,800 ¥202,100 ¥202,100
15 15-3240 ¥142,900 ¥169,500 ¥169,500
22 22-3240 ¥104,100 ¥129,400 ¥129,400
30 30-3240 ¥82,500 ¥93,300 ¥93,300
38 10 10-3840 ¥251,000 ¥304,200 ¥304,200 LS-38  ¥15,200
13 13-3840 ¥193,400 ¥223,000 ¥223,000
15 15-3840 ¥168,600 ¥198,300 ¥198,300
22 22-3840 ¥122,100 ¥151,200 ¥151,200
30 30-3840 ¥93,300 ¥109,200 ¥109,200
50 15 15-5040 ¥219,700 ¥257,000 ¥257,000 LS-50 ¥17,600
22 22-5040 ¥159,700 ¥191,400 ¥191,400
30 30-5040 ¥119,800 ¥138,400 ¥138,400
400 450 15 10 10-1545 ¥122,900 ¥147,200 ¥147,200 LS-15 ¥10,100
13 13-1545 ¥97,600 ¥118,200 ¥118,200
15 15-1545 ¥87,500 ¥105,900 ¥105,900
22 22-1545 ¥65,200 ¥77,900 ¥77,900
30 30-1545 ¥50,200 ¥59,900 ¥59,900
20 10 10-2045 ¥169,400 ¥202,800 ¥202,800 LS-20 ¥10,300
13 13-2045 ¥130,100 ¥161,500 ¥161,500
15 15-2045 ¥113,500 ¥135,100 ¥135,100
22 22-2045 ¥81,100 ¥102,300 ¥102,300
30 30-2045 ¥66,200 ¥78,500 ¥78,500
25 10 10-2545 ¥200,200 ¥241,100 ¥241,100 LS-25 ¥11,900
13 13-2545 ¥153,800 ¥189,800 ¥189,800
15 15-2545 ¥137,100 ¥161,900 ¥161,900
22 22-2545 ¥98,800 ¥120,600 ¥120,600
30 30-2545 ¥77,700 ¥91,300 ¥91,300
32 10 10-3245 ¥250,500 ¥302,200 ¥302,200 LS-32 ¥13,500
13 13-3245 ¥192,500 ¥229,400 ¥229,400
15 15-3245 ¥160,200 ¥185,900 ¥185,900
22 22-3245 ¥118,300 ¥143,100 ¥143,100
30 30-3245 ¥92,000 ¥107,600 ¥107,600
38 10 10-3845 ¥284,800 ¥331,900 ¥331,900 LS-38 ¥15,200
13 13-3845 ¥219,200 ¥247,800 ¥247,800
15 15-3845 ¥187,700 ¥218,100 ¥218,100
22 22-3845 ¥138,700 ¥180,100 ¥180,100
30 30-3845 ¥108,700 ¥127,400 ¥127,400
50 13 13-5045 ¥298,600 ¥325,100 ¥325,100 LS-50 ¥17,600
15 15-5045 ¥233,800 ¥274,900 ¥274,900
22 22-5045 ¥180,300 ¥217,000 ¥217,000
30 30-5045 ¥135,400 ¥155,000 ¥155,000
450 500 15 10 10-1550 ¥135,100 ¥162,300 ¥162,300 LS-15 ¥10,100
13 13-1550 ¥106,600 ¥129,700 ¥129,700
15 15-1550 ¥95,800 ¥116,000 ¥116,000
22 22-1550 ¥71,700 ¥86,000 ¥86,000
30 30-1550 ¥54,600 ¥65,000 ¥65,000
20 10 10-2050 ¥185,200 ¥221,900 ¥221,900 LS-20 ¥10,300
13 13-2050 ¥141,900 ¥176,200 ¥176,200
15 15-2050 ¥120,600 ¥148,600 ¥148,600
22 22-2050 ¥87,800 ¥109,800 ¥109,800
30 30-2050 ¥71,600 ¥87,700 ¥87,700
25 10 10-2550 ¥219,200 ¥264,200 ¥264,200 LS-25 ¥11,900
13 13-2550 ¥168,300 ¥205,700 ¥205,700
15 15-2550 ¥148,900 ¥175,700 ¥175,700
22 22-2550 ¥106,900 ¥130,200 ¥130,200
30 30-2550 ¥84,400 ¥100,500 ¥100,500
32 10 10-3250 ¥275,000 ¥331,800 ¥331,800 LS-32 ¥13,500
13 13-3250 ¥210,900 ¥251,400 ¥251,400
15 15-3250 ¥176,900 ¥211,300 ¥211,300
22 22-3250 ¥128,300 ¥158,500 ¥158,500
30 30-3250 ¥99,500 ¥116,500 ¥116,500
38 10 10-3850 ¥312,100 ¥364,300 ¥364,300 LS-38  ¥15,200
13 13-3850 ¥240,100 ¥276,400 ¥276,400
15 15-3850 ¥208,400 ¥246,100 ¥246,100
22 22-3850 ¥150,400 ¥186,700 ¥186,700
30 30-3850 ¥117,600 ¥139,000 ¥139,000
50 10 10-5050 ¥427,700 ¥516,100 ¥516,100 LS-50 ¥17,600
13 13-5050 ¥327,500 ¥365,800 ¥365,800
15 15-5050 ¥253,300 ¥317,400 ¥317,400
22 22-5050 ¥196,800 ¥235,100 ¥235,100
30 30-5050 ¥147,100 ¥171,500 ¥171,500
